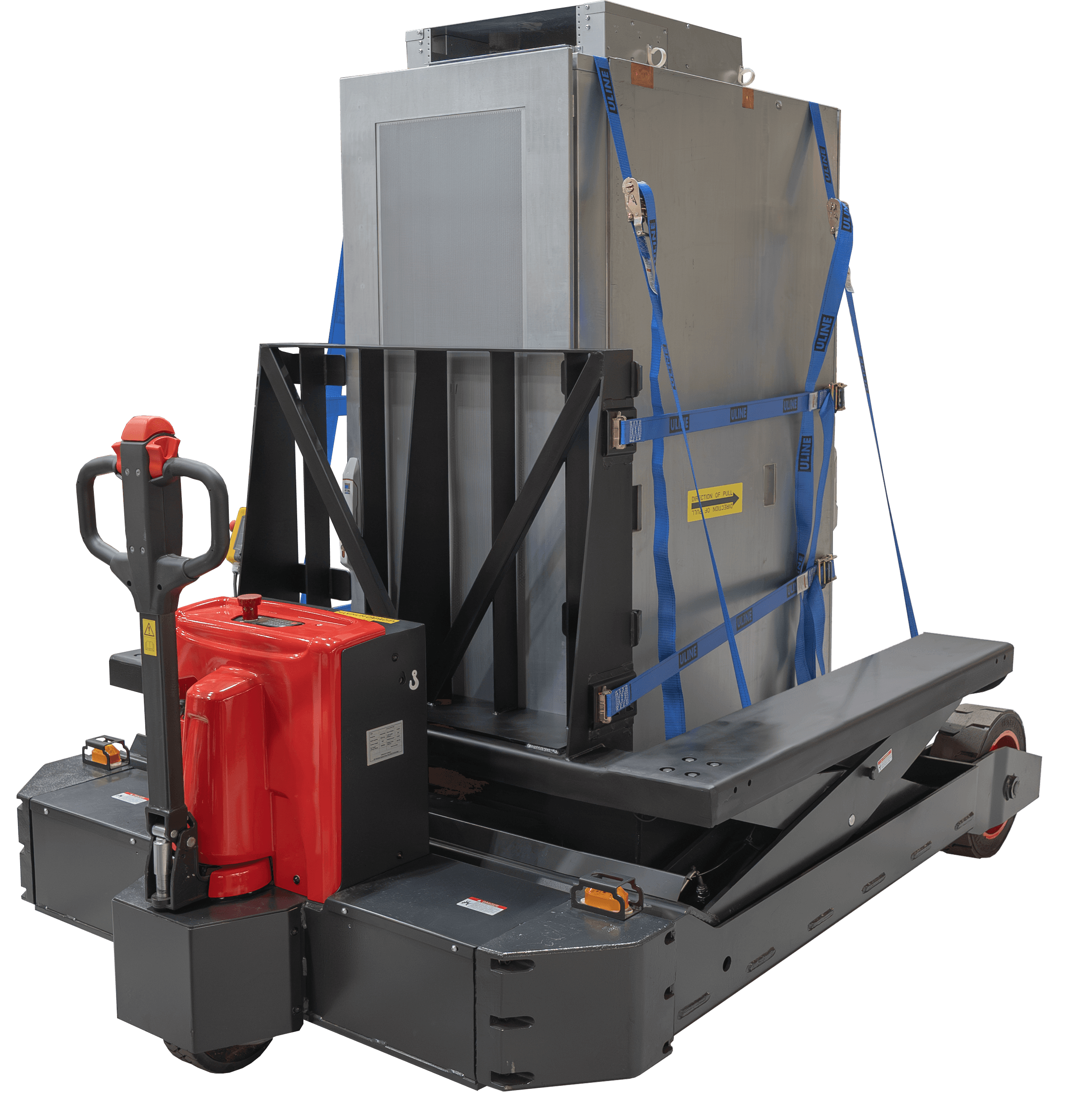

RT-PLD Rack Mover
Customized for the data center, the RT-PLD moves fully loaded racks up to 6,000 lbs from truck to white space on a single stable platform. No ramps, no crew of six, no unstable transitions.
Specifications
6,000 lbs
Load Capacity
3,462 lbs
Weight
35 x 75 in
Deck Size
104 in
Overall Length
41 in
Overall Width
52 in
Overall Height
16.25 / 11.75 in
Tire Size Front / Rear
0.25 in
Platform Min
17 in
Raised Height
48V 85Ah
Battery, Maintenance-Free
Custom RT-PLD Cut Sheet
Full specs, dimensions, and features · PDF
Value Drivers
Safety
Custom bracing and integrated strap points hold fully loaded racks upright and padded, and a single stable platform replaces the ramps crews use to clear curbs and dock transitions.
Speed to Deployment
Racks move truck to white space in one controlled pass, straight to the floor instead of a manual, multi-person transfer.
Uptime
16 inches of lift clears curbs and dock transitions without ramps, and solid tires hold stable across thresholds, so every rack makes the trip the same controlled way, with far less chance of damage en route.
Productivity
A single vertical tiller runs all drive and steering, so one operator moves a 6,000 lb rack that would otherwise need a crew and staging rig.
Security
Controlled single-platform transport keeps handling exposure of high-value GPU and AI racks low from dock to floor. With the optional BallyQ Telematics add-on, fleet managers can control operator access, monitor utilization, and locate equipment across facilities.
Customization
Ballymore has an in-house team capable of designing a fleet of material handling or vertical access equipment around your specific needs, whether adapted from this product or built fully custom.
Where It Works

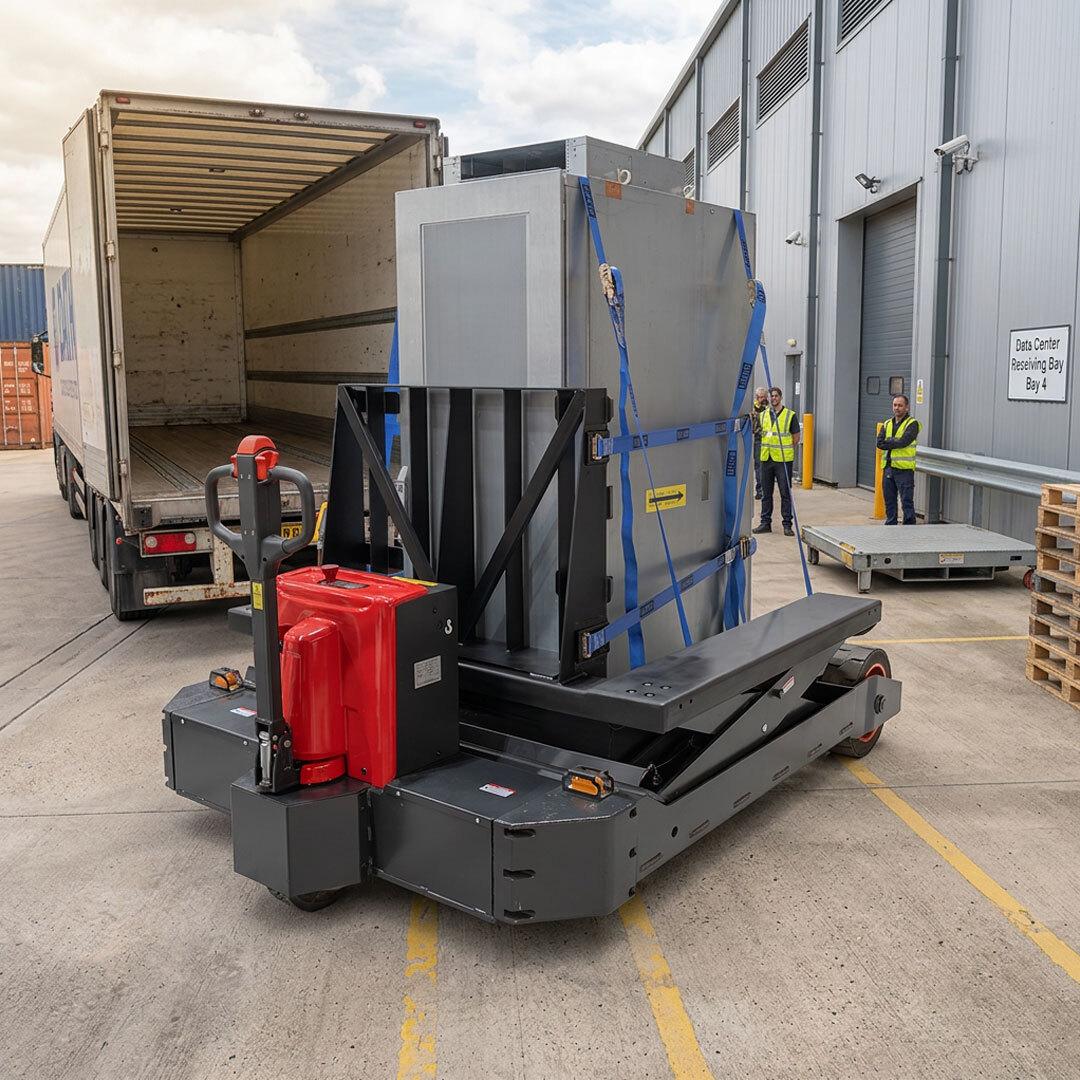

At the Loading Dock
Racks arrive at the dock and load directly onto the RT-PLD's single platform. The 16-inch lift clears curbs and dock transitions without ramps, so racks move truck to white space in one controlled pass. No separate staging rig, no multi-person transfer.
Talk to Us About a Custom RT-PLD
Questions about the RT-PLD or want a custom quote for your facility? Give us a call or fill out the form and we will get back to you.
