Model #: TT-913F

Tank Top - Non-Adjustable Height Work Platform, Heights Available From 9' To 13'

$8,137.00
Add-ons

Shipping Details

Purchases are for commercial businesses only. We will not ship to personal residence.

Shipping Information

General Shipping Guidelines

Purchases are for commercial businesses only. Will not ship to personal residence.

Only carriers that accept freight from both Coatesville and Pittsburgh are ABF (preferred), Ceva (customer must have an account), Ward (customer must have an account), and Estes (with limitations).

Logistics companies must confirm their use of one of these carriers before orders are accepted.

Shipments to California or Canada automatically trigger CAL-Osha requirements if they are five or more steps. Commercial invoices are mandatory for shipments to Canada, along with broker information.

  • No flatbeds, refrigerated truck or pickup trucks
  • Dry Van only
  • Wood floors only
  • Fully enclosed freight trucks only
  • Swing doors required for larger items that ship assembled/ all welded

Specific quantities may change LTL shipments to truckload shipments based on item dimensions and quantity (e.g., six ML154021P would be a dedicated truck shipment, while six 063214P would be two pallets at 96x40x60 each).

Learn More Opens in a new tab.

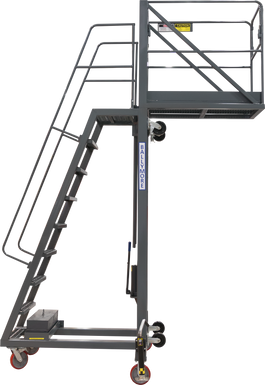

Safely access the tops of tank trucks, railroad cars, and other cantilevered applications with this tank top lift. The cantilever ladder is counterbalanced by steel supports, which help support the platform extending into the work area with no obstructions on the bottom of the ladder. The platform extends beyond the stay or back support 20 to 40 inches and is normally used when needing to access hard-to-reach areas. 8" Casters help move the lift to its desired application.
  • 300 Lb. Capacity
  • Optional Accessories:
    • Tool Tray
    • Fluorescent Tube Holder
    • Platform Duplex Receptacle
    • Removable 30" Extension Rail Optional (shown)
  • Safety Orange Powder Coat Optional for Outdoor Applications
  • Primer Undercoat And Powder Coat Finish Are Recommended Features
  • Available in any fixed height to customer specifications from 9' To 13'
  • Provides Easy Access To Tank Trucks, Railroad Cars & Other Cantilevered Applications
  • Great For Clearing Snow And Ice Off Tops Of Trailers
  • Manually Propelled For Use On Hard Level Surfaces
  • 48" Long Cantilevered Platform
  • Hydraulic Hand Pump Raises & Lowers Cantilevered Platform
  • Open Serrated Grating Steps And Deck Tread
  • Slip-resistant Climbing Rungs
  • Make I28"w X 60"l Base, Fixed Outriggers Spread To 69"
  • Full Rails On Both Sides, Gates At Each End Of The Platform
  • 2 Swivel & 2 Rigid 8" Casters For Use On Hard Surfaces
  • Two Adjustable Stabilizing Jacks Secure Lifts To The Ground
  • Fixed Platform Height Available
  • Gray Powder Coat Finish (standard)
  • Weight: 1450 lb
  • Overall Length: 108 in
  • Overall Width: 69 in
  • Overall Height: 154 in
  • Assembled L X W X H: 154x108x69
  • Color: Gray
  • Base W x L: 28 INCH x 60 INCH
  • Platform Length: 48 in
  • Platform Width: 24 in
