Model #: BM-MM-2K-54.25R-2672-H

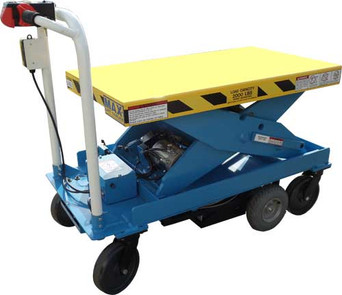

Max Mobile Lift Table Hand Control 54.25 26X72 2K Capacity

$16,569.36
Add-ons

Product Request Quote

Shipping Details

Purchases are for commercial businesses only. We will not ship to personal residence.

Shipping Information

General Shipping Guidelines

Purchases are for commercial businesses only. Will not ship to personal residence.

Only carriers that accept freight from both Coatesville and Pittsburgh are ABF (preferred), Ceva (customer must have an account), Ward (customer must have an account), and Estes (with limitations).

Logistics companies must confirm their use of one of these carriers before orders are accepted.

Shipments to California or Canada automatically trigger CAL-Osha requirements if they are five or more steps. Commercial invoices are mandatory for shipments to Canada, along with broker information.

  • No flatbeds, refrigerated truck or pickup trucks
  • Dry Van only
  • Wood floors only
  • Fully enclosed freight trucks only
  • Swing doors required for larger items that ship assembled/ all welded

Specific quantities may change LTL shipments to truckload shipments based on item dimensions and quantity (e.g., six ML154021P would be a dedicated truck shipment, while six 063214P would be two pallets at 96x40x60 each).

Learn More Opens in a new tab.

Features

Tap any marker to learn more about the product.

Description

The LPMC series of self propelled industrial lift carts is a hybrid product created by mounting a heavy duty transaxle drive system to our Max-Lift table. Additional changes are made to ensure the most stable and maneuverable lift cart possible. The lift cart features roller grip controls for moving while lifting is achieved by a handle mounted push button pendent control. In order to create a safe working environment, the lifting function is disabled during horizontal travel. The LPMC mobile lifts are built-to-order and are highly customizable. We can alter the lift table in numerous ways including custom platform sizes, shapes and top designs as well as the underlying electric platform truck's controls, size and caster arrangement.

Standard

  • Heavy duty 24V DC electronics and drive motor
  • 24V DC operating control voltage
  • Constant pressure up-down push controls
  • Cylinders with internal stops
  • S.A.E. hoses and fittings
  • Integral safety restraint maintenance bars
  • NEMA1 prewired controls & electrical connectors
  • Control box contains contactor and fuses
  • Chrome plated shafting cylinder piston rods
  • Surfaces degreased & descaled
  • Surfaces finished with Yellow & Blue enamel
  • Top with yellow & black safety strips
  • Gear pump with check, relief, & solenoid valve
  • Lift inactive while cart is in motion
  • Limited speed while lift is raised
  • Includes hydraulic oil and filter
  • Roller variable speed forward/reverse controls
  • Rabbit/turtle switch for top speed control
  • Power on green light
  • Flashing green light when battery is low
  • Emergency stop bump switch
  • Horn and key switch
  • Automatic braking (Dynamic regenerative)
  • Automatic parking brake (Electro-mechanical)
  • Splash proof electronics
  • Release brake drive inhibit
  • Charge mode drive inhibit
  • Throttle fault inhibit
  • On-Board battery charger
  • Free-wheel mode
  • Heavy duty articulated transaxle drive
  • Two 35 amp maintenance free batteries

Specs

  • Weight 1150 lb
  • Hand Controls / Foot Controls Hand Controls
  • LPI Part Number LPMC-36
  • Platform Length 72 in
  • Platform Width 26 in
  • Weight Capacity 2000 lb
  • Lowered Height 18.25 in
  • Platform W x L 26 INCH x 72 INCH
  • Platform Height 54.25 INCH
