Model #: BM-MDD-2K-43R-4824-F

Max-M22/M33 Series Lift Table 2K Capacity 48x24 Foot Controls

$3,592.00
Add-ons

Product Request Quote

Shipping Details

Purchases are for commercial businesses only. We will not ship to personal residence.

Shipping Information

General Shipping Guidelines

Purchases are for commercial businesses only. Will not ship to personal residence.

Only carriers that accept freight from both Coatesville and Pittsburgh are ABF (preferred), Ceva (customer must have an account), Ward (customer must have an account), and Estes (with limitations).

Logistics companies must confirm their use of one of these carriers before orders are accepted.

Shipments to California or Canada automatically trigger CAL-Osha requirements if they are five or more steps. Commercial invoices are mandatory for shipments to Canada, along with broker information.

  • No flatbeds, refrigerated truck or pickup trucks
  • Dry Van only
  • Wood floors only
  • Fully enclosed freight trucks only
  • Swing doors required for larger items that ship assembled/ all welded

Specific quantities may change LTL shipments to truckload shipments based on item dimensions and quantity (e.g., six ML154021P would be a dedicated truck shipment, while six 063214P would be two pallets at 96x40x60 each).

Learn More Opens in a new tab.

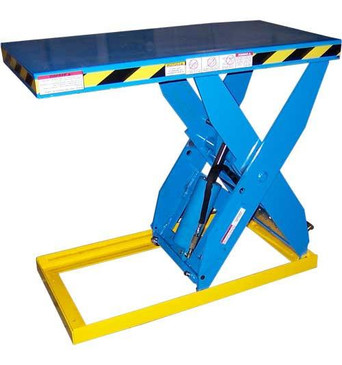

The max-m22/33 ergonomic scissor lift table incorporates all the popular features of the time-tested Max-Lift premium lift table into an economical quality lift table that competes handily with lower priced tables on the market. The max-m22/33 has a 2,200 or 3,300 lb capacity with a 36" vertical travel. There are 4 standard top sizes available with others available upon request. Features high quality camrollers, pivot pins and bearings. All welded construction meets aws standard service. The max-m22/33 conforms to or exceeds ANSI mh 29,1-1994.
  • High quality Camrollers, Pivot Pins and Bearings
  • 4 Standard Tops Available (others upon request)
  • Tables conform to or exceed ANSI MH 29.1-1994
  • Life-time lubricated bearings
  • Internally mounted 1.5 HP 115 Volt TENV motor. 115 Volt operating control voltage.
  • NEMA constant pressure. Magnet backed up/down push button control station with 10' straight cord.
  • NEMA - 1 prewired controls and electrical connectors. Control box contains contactor and control transformer.
  • High quality fit and finish
  • 10 ft. power cord. (Connector not included)
  • Hard chrome plated, polished shafting and hydraulic cylinder piston rods.
  • Surface degreased, descaled, and finished with Safety Yellow and Blue color.
  • Smooth steel top with yellow and black safety stripes.
  • S.A.E. hoses and fittings.
  • Internal gear pump with check valve, relief valve, solenoid valve.
  • Includes hydraulic oil and filter.
  • Weight: 620 lb
  • Hand Controls / Foot Controls: Foot Controls
  • LPI Part Number: MAX-M22
  • Platform Length: 24 in
  • Platform Width: 48 in
  • Weight Capacity: 2200 lb
  • Lowered Height: 7.25 in
  • Platform W x L: 48 INCH x 24 INCH
  • Platform Height: 43.25 INCH
